What is MakerSlide?

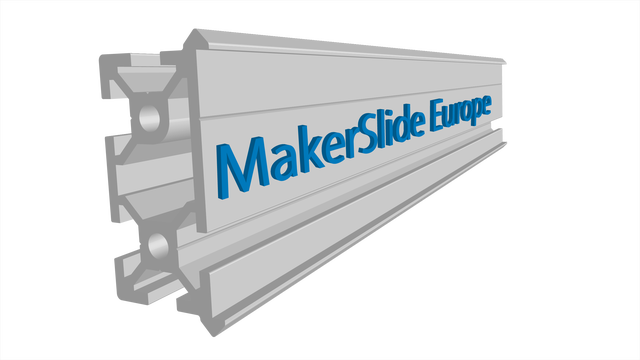

MakerSlide Extrusion

MakerSlide was created by the brilliant designer and open hardware pioneer Barton Dring, and first launched in America with the help of his Kickstarter. The idea was a hit, and instantly found its way into many open source projects.

MakerSlide is an open source linear bearin system for CNC equipment that is low cost and extremely easy to integrate in any design. More affordable than the commercial systems, yet just as structurally sound and easily implemented, MakerSlide does away with those dodgy

MakerSlide with carriage

homemade slides. Based on the tried-and-true system of V-groove bearings running on V-rails, MakerSlide integrates the V-rail into a widely used 20×40 mm aluminium extrusion profile, thus offering both linear motion and structural support in one piece. Delrin V-wheels run on the V-rail and stay true to several axes at the same time, creating a firm and sturdy linear bearing. To adjust the tension on the track, a small eccentric spacer is integrated into the axle of one of the V-wheels, making the system easily adjustable and simple to implement.

What's the aim of this project?

Open Hardware

The goal is to be able to make MakerSlide available for builders, hackers and designers in Europe. MakerSlide extrusion is already available in America and Canada through Inventables, but the cost of international shipping surpasses most hobby budgets. If the funding goal is reached, a UK based manufacturer can do a small production run. Alongside manufacturing the MakerSlide extrusion, we are also going to get some of the MakerSlide accessories made. More on that below, in the rewards section.

Some MakerSlide Creations

The ShapeOko open source CNC Router, designed and developed by Edward Ford, is a simple yet effective design. It relies on the easy integration of MakerSlide to create an affordable router.

For you, current or soon to be ShapeOko owners, the following link shows a few ways this MakerSlide could be used to upgrade your machine (Link to be added at a later date, sorry) ShapeOko Routers

The 2.x Laser cutter, Bart Dring's second generation laser cutter, makes use of the light weight aspect of MakerSlide, enabling the laser to perform better than some commercial ones.

2.x Laser Cutter The ORD Bot 3D printers are another one of Bart Dring's inventions. The ORD Bots are simple, perform outstandingly, and look good doing it.

ORD Bots

MakerSlide can also be used in other non-CNC projects, here is a simple and low cost camera slider.

There will be many more MakerSlide designs hitting the open hardware community, some already in the pipeline. Discussion and development is taking place at both the buildlog.net forum and the ShapeOko forum.

The Rewards

MakerSlide Accessories - For MakerSlide to function, a few accesories are needed. These include

Eccentric Spacer

Derlin V-Wheel

Delrin V-wheels and eccentric spacers. To build a working machine, a motor with pulley, belting and idler wheels are also needed. This project hopes to offer part of the V-wheels and the eccentric spacers. The eccentric spacers are used to tension the V-wheels onto the MakerSlide. The V-wheels consist of an outer Delrin casing (bearing the actual V groove), two ball bearings and three washers, all kept together by a standard M5 bolt. Unfortunately, we will only offer the outer Delrin shell and washers for sale, the main reason for this being the large shipping cost for heavy items such as bearings (the Delrin part is very light). The bearings are relatively common and available in almost all countries at lower prices than what we could supply them for (including shipping around Europe). Please see the FAQs at the bottom of the page for more infomation on the accessories.

We have worked closely with the Inventables store to insure all the other small MakerSlide accesories have reasonable international shipping charges; this means that any other components you might need can be purchased from them. The items they offer that might be of use include the standard carriage plate, pulleys, belts and belt idlers. Please use the following link to view their store Inventables MakerSlide Store.

To keep things simple and the delivery costs low, all MakerSlide will be in one metre lengths. Please also note that the delivery charge is not included in the pledge, and added on later.

Open Source

MakerSlide is part of an open source project started by Bart Dring. We are working with and supporting the original creators of this open source design. In this case Bart earns a portion of each sale for each unit sold. This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License.

Please see the FAQs at the bottom of the page for more detailed information, including delivery.
